Programmable High Speed Automatic Winding Machine

(Model No.: AEX-01 & AEX-02)

Armature high speed coil winding machines are favored by the giants of the industry. We utilize high quality material and technology to manufacture our products. This coupled with our 15-year strong expertise has allowed us to create precise yet completely programmable machines.

High Speed Bench Winders: Product Features

Common features for models AEX-01 & AEX-02:

DOWNLOAD

FEATURES	DETAILED INFORMATION
	AEX-01	AEX-02
WIRE DIAMETER	0.02-1.00 MM (.0008-.039 IN)	0.02-0.80 MM (.0008-.0314 IN)
WINDING WIDTH	100 MM (3.93 IN)	100 MM (3.93 IN)
BOBBIN DIAMETER	80 MM (3.14 IN)	80 MM (3.14 IN)
SPEED (MAX.)	9000. Speed can be programmed in percentage increment or decrements. Winding speed can be altered while the machine is in motion. Also features an integrated speed knob to quickly change the speed manually.
DIMENSIONS W X D X H	425 X 350 X 620 MM (16.75 X 13.75 X 24.5 IN)
CONTROL SYSTEM	16 Bit Micro Controller
DISPLAY	All operational information available at one glance on the superior LCD display. 40 X 2 Backlit LCD.
PROGRAMMING	Also allows for programming of several menu items.
MEMORY	95 programs consisting of 9 sections each can be saved in the machine.
ONLINE CORRECTION	Layer Stop, Brake, Winding Width, Wire Diameter, Speed, Spindle Locking, Guide Position
ANNUNCIATION	Over Speed, Wire Cut, Layer Stop, Brake
COUNTING	Precise counting functionality allows for up0down counting as well as tracking of wire guide.
PRODUCTION COUNTER	Features a built-in production counter for superior operational control.
SPEED INDICATION	Ensures high quality winding with complete control of the speed. Machine flashes relevant information when high levels of speed (~ 800-900 RPM) are achieved.
SECTION WINDING	Each program can consist of 9 winding sections. Since there are 95 programs, it totals to 855 winding sections.
WINDING DIRECTION	Winding direction can be programmed in accordance with the application. Options of CW/CCW winding are available.
WINDING TYPE	Layer, Section, Bifiliar, Pyramid, Tapping
CONTINUOUS DISPLAY	The display provides up-to-date continuous information about the number of turns completed as well as other data. This helps in monitoring the operation more effectively.
ACCELERATION	Acceleration and deceleration with reference to the number of turns can be programmed.
PROGRAM PARAMETERS	Offers complete flexibility to program all winding parameters.
OPTIONAL ACCESSORIES	Tail Stock, Tape Attachment, Graduated Tensioner
APPLICATIONS	SMPS and Small Transformers, WWR, Ignition Coils, Multi Section Coils, Inductive Coils, etc.
BRAKE	Features a double brake that is extremely efficient and provides durable functioning. The brake’s functionalities can be programmed.
TAPPING	An incredible 855 taps in total. Each of the 95 programs can consist of 9 taps.
POWER SUPPLY	Requires SMPS supply to power the logic circuit. This ensures continuous functioning of the machine over a wide range of voltages.
LAYER STOP	This can be programmed for each winding variation individually.
WIRE PITCH	Can be easily programmed in steps of 0.01 mm.
START FUNCTION	Programmed to start automatically. Soft start doesn’t jerk the machine or other equipment.
TURNS ACCURACY	Features highly accurate winding with 0.05 turns. Also available is the option to wind in steps of 18 angular degrees.
MANUAL BRAKE	Also features the option to handle the brake manually for better control of the spindle.
WIRE-BREAK STOP	This safety feature ensures that the machine stops if the wire breaks. This reduces strain on the machine and diminishes the possibility of faulty functioning.
TRAVERSE OFFSET	This winding position can be programmed.
TRAVERSE HOME	This position can be chosen as left or right depending on how you would want the coil to be wound.
WIRE GUIDE	Starting position can be adjusted by adjusting the wire guide. Precise wire guide adjustment possible in these machines.

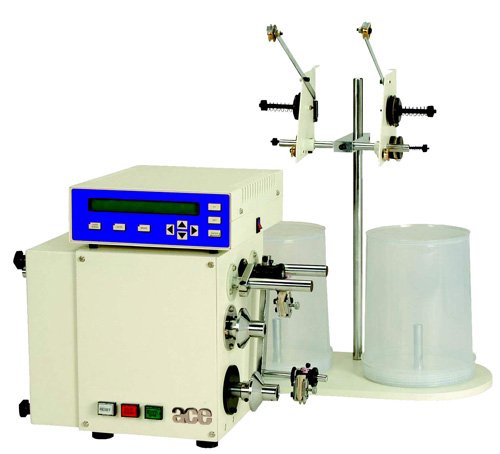

AEX 02 SIDE LOADING COIL

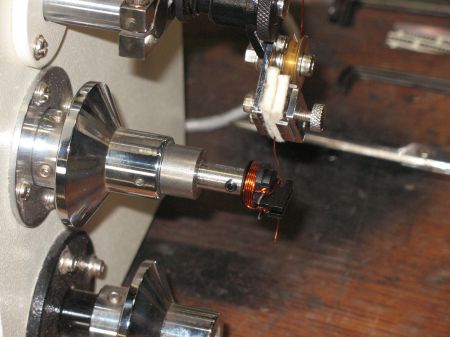

AEX 02 Winding Small Bobbin Coil
