Coil Winding Tail Stock (Model 65 & 66)

At Armature Coil Equipment (ACE), we strive to provide diverse solutions in terms of industrial products. We also provide a variety of supplementary components and machines to enhance the performance of our products. For our coil winding product range, we offer the following solution driven products – Models 65 and 66 Coil Winding Tailstocks. Both models can be used along with any of ACE’s heavy duty coil winding machines.

Specifications

The rails and tailstock models are constructed with precise specifications so that your coil winding operation will be fast and accurate.



Sr. No Specifications Model 65 Model 66 Rails
1. Base - - 1/4ʺ
2. Rails - - 4ʺ wide
3. Swing 35.75ʺ 37.25ʺ -
4. Dimensions (Height) 44.25ʺ (Height) 44.25ʺ (Length) 8ʹ long channel
5. Gross Weight 225 lbs. 309 lbs. 125 lbs.
6. Weight Capacity Loads up to 2,000 lbs. Loads up to 7,000 lbs. -
7. Center Distance -
8. Center Screw Adjustment 4 1/2ʺ -
9. Send RFQ RFQ RFQ RFQ

Design Features

These devices are designed to support a range of winding operations for heavy duty transformers and motors. They allow for the easy yet precise rotation and tensioning of wires for coil winding purposes. The tailstock consists of a weldment base bed constructed from thick steel plates. The tailstock is placed on the base bed, allowing for easy movement and adjustment during the winding operation. The head is constructed out of machined cast iron, ensuring high strength and durability. Model 65 consists of a live center with a No. 2 Morse Taper. Model 66 consists of a live center with a No. 4 Morse Taper.

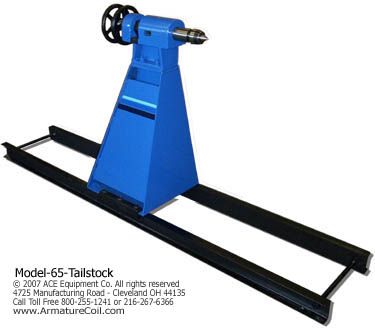

Model 65 Tail Stock

Model 65 Tail Stock

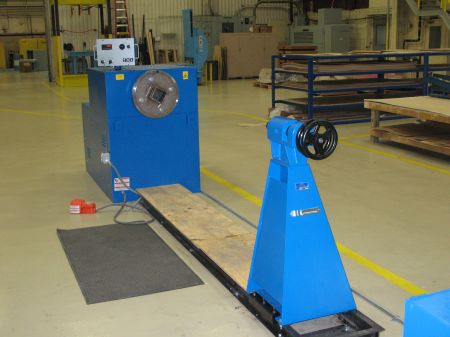

HD 20 Coil Winder and Model 66 Tailstock

HD 20 Coil Winder and Model 66 Tailstock
