Coil Winding Heads

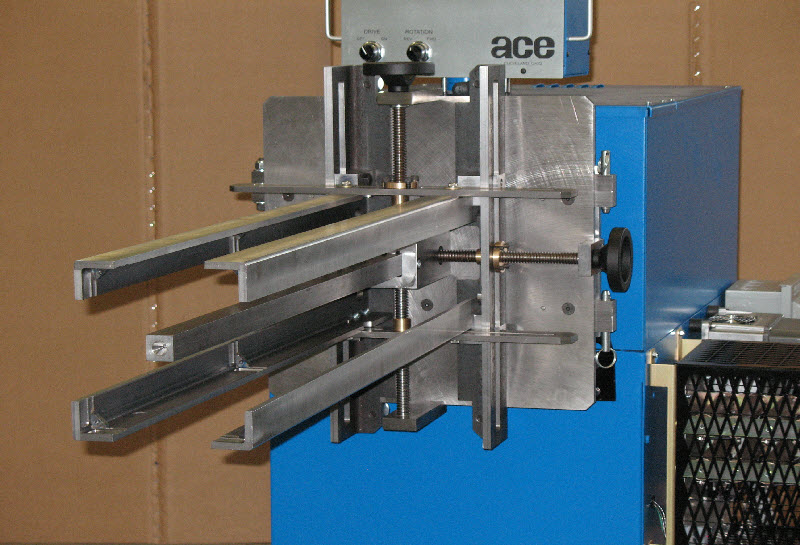

Adjustable Transformer Form
Model 1816
ACE Equipment Company introduces time and money saving tools for the electrical repair and manufacturing industry. Increase your profits by installing the ACE Adjustable Transformer Form in your winding operation.


group winding head
Model Numbers 5, 10, 11, 12
ACE Group Winding Heads are designed for winding 3 phase diamond shaped coils. Easy operation, quick setup, heavy duty. (replacement heads for Potter Rayfield)

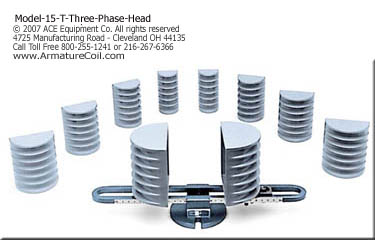

3 phase coil winding head
Model 15-T
Three phase head requires just one setting. Comes with 5 sets of forms and holder.

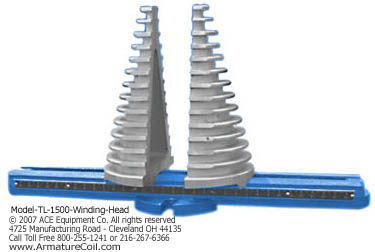

single phase winding head
Model TL-1500
Single phase head winds offers easy setup. For small integral motors.

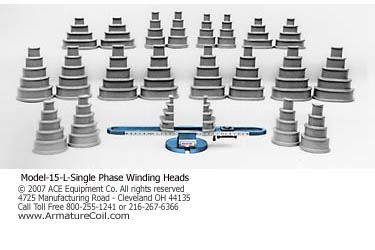

Concentric Coil Winding Head - Model 15-L
Model 15-L
Single phase head comes with 11 sets of forms and quick release holder.


transformer adjustable winding fixture
Model 18
Quick Release Fixture for high production, quick coil set up and tear down.


Quick Release Winding Head
Model 18 Quick Release Winding Head Demo *Flash Movie Video
