Bench-top Compact Coil Winding Machine


(Model Nos. 70, 71 & 72)

This compact winding machine is suitable for low-cost and small winding operations. Its compact construction will not crowd your workspace. It is constructed using heavy-duty materials. It features an integrated cabinet that can serve as a working space as well as a storage area.

Highlight: When placing an order, please specify:

  • Rotation of Faceplate: Clock-wise & Counter-clockwise
  • Voltage Requirement
Highlight: Low Cost coil winding machine for precise winding of small coils.

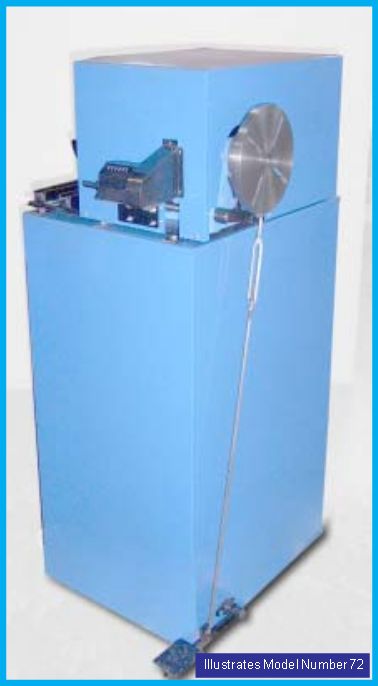

Model 72



MODEL NO. 70
  DIMENSIONS  10" W x 16" L x 10" H
  NET WEIGHT  90 Lbs.
  GROSS WEIGHT 125 Lbs.
  SEND RFQ RFQ



MODEL NO. 71
  DIMENSIONS 25" W x 25" L x 12" H
  NET WEIGHT 150 Lbs.
  GROSS WEIGHT 200 Lbs.
  SEND RFQ RFQ



MODEL NO. 72
  DIMENSIONS 25" W x 25" L x 49" H
  NET WEIGHT 190 Lbs.
  GROSS WEIGHT 250 Lbs.
  SEND RFQ RFQ

Features of Bench-top Compact Winding Machine (Model Nos. 70, 71 & 72)

Our compact bench-top winding machines feature:

  • Clutch and Brake:
    The foot pedal provides controlled single-foot operation that does not physically stress the user. The integrated cone clutch and shoe brake ensure smooth starts and stops. When the machine does not start or stop jerkily, its service life increases.

  • Faceplate:
    The faceplate features a total diameter of 8″. The faceplate shaft has a diameter of 15/16″.

  • Jogging:
    To provide uninterrupted operation (jogging), the foot pedal can be slightly depressed. This leads to the clutch being slipped, resulting in smooth effortless jogging of the winding process.

  • Winding Speeds:
    A wide range of winding speeds possible with the three different models available in this series:
    • Model 70: Infinite speed range from 500 to 1300 RPM
    • Models 71 & 72: Unlimited speeds ranging from 280 to 570 RPM,

  • Speed Adjustment:
    The speed can be adjusted manually. Infinite speed variations are possible. This can be achieved by rotating the crank located on the tilting motor base. The speed can be changed while winding is in progress (i.e. the drive is moving).

  • Motor:
    1/3 H.P., 1750 RPM, 230/460 Volt, 3 Ph, 60 HZ

  • Mechanical Counter:
    Counter driven by a four figure rotatory chain.

  • Mounting:
    Features a heavy-duty cast iron base for firm installation and reliable functioning. The entire machine including the motor has been designed to be easily mounted on a cabinet, bench, or other versatile locations. This portable machine is extremely versatile in terms of installation.

Model 70 Coil Winder

Model 70 Coil Winder

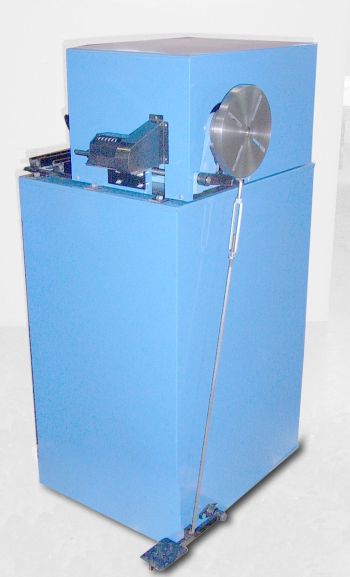

Light Duty Coil Winder 72 Finished

Light Duty Coil Winder 72 Finished
